When Your Ship Docks, What Keeps the Power Flowing? A Shore Power High Current Plug and Socket Built to Three International Standards

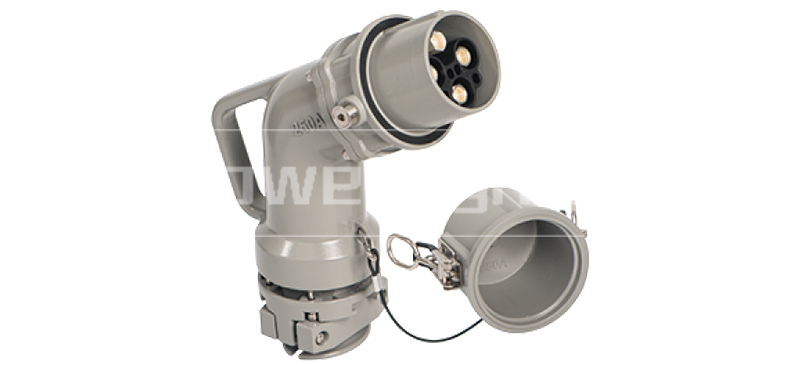

A ship ties up at the dock. The crew runs a heavy cable from the shore power pedestal to the vessel’s inlet. Unlike a factory floor, the dock is not a controlled environment. Salt spray coats every surface. Rain and condensation seep into gaps. Forklifts and dock traffic vibrate the connection. A standard industrial connector will corrode, overheat, or fail within months. A shore power high current plug and socket built to marine-specific standards solves these problems. Three standards apply: IEC 309-5, EN 60309-5, and GB/T 11918.5. This guide explains what those standards require, why full-body electropolished cast aluminum is the right material, and how ferrule crimp terminals from 70mm² up to 185mm² improve reliability. The PS Series is rated from 160A to 630A and backed by a 10-year warranty.
Three Standards That Ensure Universal Compatibility
Shore power connectors are not generic industrial plugs. They must meet specific dimensional, electrical, and environmental requirements so that a ship can connect to ports worldwide without adapters.
| Standard | Scope |
|---|---|
| IEC 309-5 | International standard for plugs and socket-outlets for shore power supply systems |
| EN 60309-5 | European harmonized version, used across EU ports |
| GB/T 11918.5 | Chinese national standard, equivalent to IEC 309-5 |
A shore power high current plug and socket that complies with all three can be used in European ports, Chinese shipyards, and anywhere else that follows IEC-based regulations. This interchangeability is not optional for international vessels.
Full‑Body Electropolished Cast Aluminum – Why Paint Isn’t Enough
Most industrial connectors use painted or powder-coated aluminum. The paint looks good – until it chips. Once the coating is breached, moisture creeps underneath, and corrosion spreads unseen. Electropolishing offers a fundamentally different approach.
What electropolishing does
The process removes a thin layer of metal, smoothing the surface to a mirror finish. Microscopic peaks and valleys where corrosion can start are eliminated. The result is a housing that resists saltwater attack without relying on paint.
Full‑body treatment
Unlike connectors that only coat external surfaces, marine-grade plugs receive electropolishing on the entire body – inside and out. Even internal surfaces exposed to condensation or salt spray stay protected.
A shore power high current plug and socket with full-body electropolishing has no paint to chip and no hidden corrosion paths. For a port or vessel operator, this means fewer replacements and lower maintenance costs over the connector’s service life.
Ferrule Crimp Terminals – A Better Connection for Large Cables
Shore power cables are heavy. Typical sizes range from 70mm² up to 185mm². Stranded copper conductors of this gauge are difficult to terminate reliably with standard screw terminals. The strands can splay, create hot spots, or loosen under vibration.
Ferrule crimp terminals solve these problems. A ferrule is a metal tube placed over the stripped conductor. Crimping compresses the ferrule into a solid, gas‑tight connection. The terminal then clamps around the ferrule – not directly on the strands.
| Feature | Screw terminal | Ferrule crimp terminal |
|---|---|---|
| Contact resistance | Higher, prone to variation | Lower, consistent |
| Vibration resistance | Can loosen over time | Remains secure |
| Strand splay | Risk of stray strands | No exposed strands |
| Installation time | Similar | Fast and repeatable |
For a 400A circuit, a low‑resistance connection directly reduces heat generation and power loss. A shore power high current plug and socket equipped with ferrule crimp terminals is the right choice for high-current shore power, mining, and heavy industrial applications where reliability is demanded.
Custom Engineered Solutions for Military and Commercial Use
Not every vessel has the same power requirements. A naval destroyer needs different connectors than a cruise ship or a tugboat. That’s why the manufacturer offers custom engineered solutions.
Military applications
Warships demand higher shock resistance, EMI shielding, and sometimes classified specifications. Custom connectors can be designed to meet military standards. The electropolished aluminum housing already provides excellent corrosion resistance; additional features like keyed alignment, integrated interlocks, and enhanced shielding can be added.
Commercial vessels
For commercial shipping – container ships, tankers, bulk carriers – the focus is on reliability and ease of maintenance. Custom options include longer cable tails, different inlet angles, or integrated status lights. The goal is to reduce crew time spent connecting and disconnecting.
How custom orders work
The engineering team works directly with the client to determine:
-
Required current rating (160A to 630A)
-
Cable size and type
-
Mounting configuration (panel, wall, or free‑standing)
-
Special materials or coatings
-
Branding or color coding
Installation and Maintenance Tips
To get the full service life from these connectors, follow these guidelines:
-
Inspect seals regularly – replace any cracked or flattened gaskets
-
Clean contacts annually – use contact cleaner and a soft brush
-
Check torque on terminals – ferrule crimp terminals rarely need re‑torquing, but verify after the first year
-
Rinse with fresh water – if connectors are exposed to salt spray, rinse periodically to prevent salt buildup
-
Store with caps – when not in use, cover sockets with protective caps to keep out debris
Where to Find These Connectors
The PS Series high current plugs and sockets described here are manufactured by HYPER (Zhejiang HYPER Electrical Co., Ltd.) under the PowerSyntax brand. HYPER operates a 10,000 m² factory with over 500 workers in Liushi, Wenzhou – the heart of China’s low‑voltage electrical industry. The company holds ISO 9001, CCC, CB, and CE certifications.
The PS Series is available in ratings from 160A to 630A, with electropolished aluminum housings, optional ferrule crimp terminals, and a 10‑year warranty. For custom applications, their engineering team can design specialized solutions for military or commercial vessels.
Make the Right Choice for Your Shore Power Application
Selecting a connector that meets IEC 309‑5, EN 60309‑5, or GB/T 11918.5 is only the first step. Full-body electropolished cast aluminum and ferrule crimp terminals differentiate a connector that will last for years from one that will fail within months. For procurement managers and engineers, these details directly affect uptime, safety, and total cost of ownership.
A shore power high current plug and socket with these specifications will outlast ordinary connectors many times over.
