Why PS Series High Current Plugs & Sockets Are Trusted in Extreme Conditions

You’re specifying power connections for a tunnel boring machine, a shipyard crane, or a surface mining operation. The equipment draws hundreds of amps. The environment is punishing—dust, water, vibration, and mechanical impact are daily realities. Standard industrial plugs won’t survive. You need connectors built for the extreme.

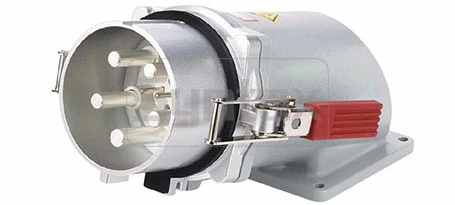

The PS Series High Current Plugs & Sockets from HYPER Electrical are engineered specifically for these conditions. Designed to meet IEC/EN standards, these heavy-duty connectors deliver safe and reliable power transmission for demanding applications like marine docks, tunneling, and surface mining. The PowerSyntax 4P 250A IP67 380V heavy duty high current wall mounting angled industrial plug (Part No.75321) exemplifies the series’ commitment to durability and safety.

This guide covers the design, specifications, applications, and procurement advantages of the PS Series, helping you make an informed decision for your next industrial power project.

Built for the Most Demanding Environments

The PS Series is not a standard industrial connector. It’s designed for applications where failure is not an option.

Robust Cast Aluminum Housing

The PS Series features an extremely robust aluminum housing that can withstand a mechanical load of approximately 2 tons. This isn‘t a plastic housing that cracks under impact or a lightweight shell that deforms under stress. The cast aluminum construction provides the structural integrity needed for tunneling, mining, and heavy industrial applications where connectors are frequently bumped, dropped, or subjected to heavy loads.

IP67 Weatherproof Protection

IP67 means the connector is completely sealed against heavy dust and protected against immersion in water up to 1 meter. For applications on docks, in shipyards, or in outdoor industrial settings, this level of protection is non-negotiable. Rain, splashing, dust storms, and even temporary flooding won‘t compromise the connection.

IEC and EN Standards Compliance

The design is based on IEC 309-1, EN 60309-1, and DIN VDE 0623 part 1. These standards govern the design, construction, and testing of industrial plugs and sockets, ensuring safety, interoperability, and reliability. Compliance means the PS Series connectors work with compatible infrastructure from other manufacturers and meet the requirements of international electrical codes.

Technical Specifications That Define Performance

The numbers tell the story of what the PS Series can deliver. Here’s what the specifications mean for your application.

Current Rating – 250A

The Part No.75321 is rated at 250A. This is the continuous current capacity—the amount of power the connector can carry without overheating. For comparison, a standard industrial plug might be rated at 16A or 32A. 250A represents a significant step up in capability, suitable for heavy machinery, mining equipment, and large-scale industrial power distribution.

Voltage Rating – 380V

The standard voltage rating is 380V, matching the three-phase power distribution used in most industrial applications. The PS Series can be customized for higher voltages based on specific project requirements.

Pole Configuration – 4P (3P+E)

The 4-pole configuration means three phases plus an earth/ground connection. This is the standard for three-phase power distribution in industrial and marine applications. The 3P+E format provides the phase conductors needed for three-phase equipment and a dedicated ground for safety.

Angled Wall Mounting Design

The Part No.75321 features an angled wall mounting design. This configuration provides strain relief on the cable and allows the connector to be positioned optimally for the installation environment. Angled connectors reduce the bending radius on the cable, extending cable life and reducing stress on the termination points.

Applications Across Heavy Industry

The PS Series serves a range of demanding applications across multiple industrial sectors.

Tunneling and Underground Construction

Tunnel boring machines and underground construction equipment draw massive power in harsh, confined conditions. The PS Series connectors are designed to withstand the dust, vibration, and mechanical stress of tunneling environments.

Shipbuilding and Marine Docks

Shipyards and marine docks are exposed to salt spray, humidity, and constant mechanical stress. The PS Series’ corrosion-resistant aluminum housing and IP67 sealing make it ideal for these applications, where reliability is critical for crane operations, welding equipment, and dock-side power.

Surface Mining and Mining Industry

Surface mining operations are among the harshest environments for electrical equipment. Dust, heavy vibration, and extreme temperatures are constant challenges. The PS Series connectors are designed to survive these conditions, delivering reliable power to excavators, haul trucks, and processing equipment.

Industrial Power Distribution

In factories, processing plants, and large-scale industrial facilities, the PS Series provides high-current power connections for heavy machinery, motor control centers, and distribution panels. The connectors’ durability and safety features make them suitable for any environment where reliable power is essential.

Procurement Advantages

For procurement professionals, the PS Series offers benefits that go beyond the product itself.

10-Year Warranty

The PS Series is backed by an industry-leading 10-year guarantee. This warranty reflects the manufacturer‘s confidence in the product’s durability and provides long-term protection for your investment.

No Minimum Order Quantity

There is no requirement on quantity—orders of any quantity are accepted. This flexibility allows you to order exactly what you need, whether it‘s a single replacement plug or connectors for a large-scale project.

OEM Service

Design and provide customized products for customer needs. If your project requires specific configurations, the PS Series can be customized to match your requirements.

Direct Factory Pricing

Competitive price for factory direct sales, without intermediate links. By purchasing directly from the manufacturer, you avoid distributor markups and get the best possible price.

Questions Engineers and Procurement Specialists Ask

What’s the difference between the PS Series and standard industrial plugs?

The PS Series is designed for higher currents—160A to 400A—than standard industrial plugs, which typically max out at 125A. It offers IP67 sealing, cast aluminum housing, and compliance with IEC/EN standards, making it suitable for extreme industrial environments where standard plugs would fail. The 10-year warranty also reflects the superior durability of the PS Series.

Why is cast aluminum housing important for industrial connectors?

Cast aluminum provides superior mechanical strength compared to plastic housings. The PS Series housing withstands approximately 2 tons of mechanical load, protecting the internal components from impact, crushing, and vibration. This durability is essential in tunneling, mining, and heavy industrial applications where connectors are subjected to frequent mechanical stress.

What does IP67 mean in practice for an industrial connector?

IP67 means the connector is completely protected against dust ingress and can withstand immersion in water up to 1 meter. For applications in shipyards, outdoor installations, and wet environments, this level of protection ensures that rain, splashing, and even temporary flooding won’t compromise the connection.

Choosing the Right Connector for Your Application

Selecting the right high-current connector requires matching the specifications to your application’s demands.

Match Current Rating to Load

The connector‘s current rating must exceed the maximum continuous current of the equipment it’s powering. A 250A connector like the Part No.75321 is suitable for loads up to 250A. If your load is higher, PS Series connectors are available up to 400A.

Consider the Installation Environment

IP67 protection is essential for outdoor or wet locations. For indoor industrial use, the same protection still provides defense against dust and accidental water exposure. The cast aluminum housing is valuable in any environment where mechanical impact is a concern.

Evaluate the Mounting Configuration

The Part No.75321 features an angled wall mounting design. This configuration is ideal for installations where cable strain relief is important or where space constraints require a specific cable exit angle. Wall-mounted sockets and plugs are also available in switched and mechanical interlocked versions for additional safety.

HYPER Electrical manufactures the PS Series High Current Plugs & Sockets, with rated currents from 160A to 400A and voltages up to 1000V. The PowerSyntax 4P 250A IP67 380V heavy duty high current wall mounting angled industrial plug (Part No.75321) is one of the key models in this range. The PS Series is designed to meet IEC 309-1 and EN 60309-1 standards, with robust cast aluminum housing, IP67 protection, and an industry-leading 10-year warranty.

High-current power connections don‘t leave room for compromise. The connector you choose affects safety, reliability, and operational uptime. The PS Series delivers the current capacity, environmental protection, and build quality that demanding industrial applications require. Whether you’re powering a tunnel boring machine, a shipyard crane, or a surface mining operation, the right connector makes the difference between a reliable installation and a recurring problem.

Ready to specify high-current connectors for your project? Reach out to HYPER Electrical’s team—they can provide technical data, customization options, and application guidance for the PS Series range.
