Why Do Heavy Industries Trust the PS Series High Current Plugs & Sockets for 160A to 630A Applications?
You’ve seen the aftermath: a connector crushed by a mining truck, its housing split open. Or a shore power plug whose contacts turned green from saltwater, causing a ship to lose auxiliary power. Ordinary industrial plugs are not designed for tunnel boring machines, open‑pit mines, or steel mills. They crack, corrode, and fail – often at the worst possible moment.
A high‑current connector that can handle these conditions must survive mechanical loads of up to 2 tonnes, operate reliably from -40°C to +100°C, and keep water out even during temporary immersion. This guide walks through the five features that actually matter: IP67 sealing, silver‑plated contacts, a robust aluminum housing, finger touch protection, and a 10‑year warranty. You’ll also see where these connectors are used and how one manufacturer builds them to last.
Beyond Standard CEE Plugs: Where High‑Current Connectors Go
For years, high‑current connectors up to 125A have been common in industrial settings. But many applications demand much more – up to 400A and 630A – pushing ordinary connectors to their limits.
Tunnel construction
Tunnel boring machines (TBMs) generate extreme vibration and mechanical stress. Connectors must not loosen or crack. A robust housing that withstands loads up to 2 tonnes is essential – especially when cables get run over by heavy equipment.
Shipbuilding and shore power
Saltwater corrosion is relentless. Silver‑plated contacts resist oxidation far better than tin or brass. A housing that doesn’t rely on paint (which chips) and IP67 sealing that keeps water out during storms or washdowns are non‑negotiable.
Opencast mining
Dust, vibration, and heavy loads are daily realities. Vibration‑proof designs and sealed enclosures prevent failures that would shut down a dragline or conveyor.
Steel and iron works
High temperatures (up to +100°C) and metallic dust are common. Connectors must operate without overheating, and the sealed design must keep conductive dust away from contacts.
Railway applications
Vibration‑proof connections are critical for signalling and traction power. Silver‑plated contacts maintain low resistance even under constant vibration.

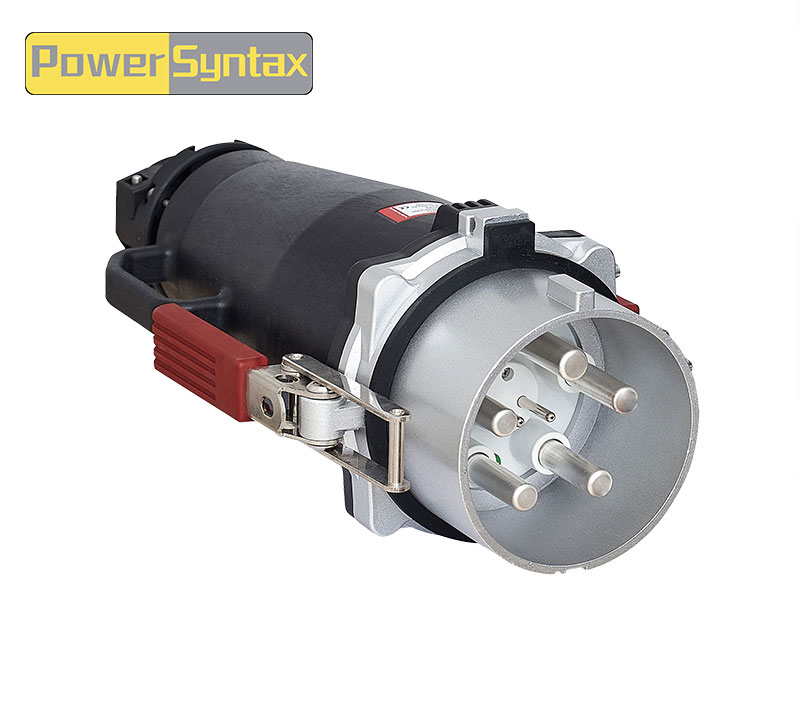

A PS Series high current plug and socket is engineered for these demanding environments.
Two Layers of Protection That Never Fail: IP67 and Finger Touch
Safety and reliability start with ingress protection and shock prevention.
IP67 – dust‑tight and waterproof
A connector rated IP67 is completely dust‑tight and protected against temporary immersion in water (up to 1 meter for 30 minutes). For comparison, many industrial plugs are only IP44 (splash‑proof). IP67 reduces maintenance, prevents moisture penetration, and ensures reliable operation in high‑humidity environments like docks or floating solar plants. The metal socket boxes are rated IP55 – protected against dust and splashing water.
Finger touch protection
Each socket has permanently installed finger contact protection. If a worker accidentally touches a live part, the shield prevents electric shock. It also stops foreign particles from entering the connector, which could cause a system failure.
Complete protection in adverse conditions
-
Always reliable in rain, snow, dust, and humidity
-
Low maintenance – no dust or moisture ingress
-
High security at all times
A PS Series high current plug and socket with IP67 and finger touch protection is safe for temporary power distribution at construction sites or outdoor events.
Silver‑Plated Contacts – Lower Loss, Higher Reliability
The contact system is the heart of any high‑current connector.
Maximum contact surface, minimal power loss
Silver plating provides superior conductivity. The large contact surface reduces electrical resistance, which means less heat generation and lower energy costs. For a 400A circuit, even a small reduction in contact resistance saves significant energy over the lifetime of the equipment.
Easy replacement when worn
After thousands of mating cycles, contacts eventually wear. The design allows easy, quick replacement using standard tools – no special equipment needed.
Reliable under vibration, temperature, and dirt
Silver‑plated contacts maintain high reliability in adverse conditions: strong vibrations (railway, mining), high temperatures (steel mills), and heavy soiling (cement plants, mines). This is a major advantage over tin‑plated contacts, which oxidize faster in harsh environments.
Robust Aluminum Housing – Withstands 2 Tonnes
Mechanical robustness is non‑negotiable for heavy industrial applications.
Tested to 2 tonnes
The connectors are built with an extremely robust aluminum housing that can withstand loads of approximately 2 tonnes. This means they can be driven over by heavy equipment, dropped from height, or crushed without failure. For tunnel construction, construction sites, and mines, this robustness is essential.
Temperature range -40°C to +100°C
The connectors operate reliably from -40°C to +100°C, ensuring full functionality in freezing arctic conditions and in hot industrial environments. Reduced risk of overheating means fewer plant failures and a lower fire risk.
Fixed captive screws for easy installation
Captive screws are permanently attached to the housing – they cannot be lost. This speeds up installation and increases safety. No more searching for dropped screws on a dark factory floor.
10‑Year Warranty – Confidence You Can Count On
A 10‑year warranty on high‑current industrial plugs ranging from 160A to 630A is exceptional.
What the warranty covers
The warranty covers defects in materials and workmanship under normal use, including the housing, contacts, and sealing components. It does not cover normal wear of contacts (which are replaceable).
Why a 10‑year warranty matters
A decade of coverage tells you the manufacturer stands behind the product. For procurement managers, it reduces risk and simplifies long‑term budgeting. For operators, it means fewer unexpected failures. Most industrial connectors come with 1‑2 year warranties; 10 years is a clear statement of confidence.
A PS Series high current plug and socket with a 10‑year warranty is a long‑term investment in reliable power distribution.
Easy Wiring and Installation
Installing high‑current connectors shouldn’t require a specialist.
Cable connections with or without ferrule
The terminals accept cables with or without ferrules. Use standard stranded wire or add ferrules for extra protection – both work.
Standard mounting tools only
No special tools needed. A standard screwdriver and wrench are sufficient. The user‑friendly cable entry makes feeding the cable into the housing straightforward.
Built‑in pilot contacts
Standard built‑in pilot contacts ensure a secure energy supply. The pilot cable can be routed in the supply cable as a hybrid cable or separately in the housing.
Applications Across Industries
The PS Series is used in a wide range of industries. The table below summarizes key applications.
| Industry sector | Specific applications |
|---|---|
| Public infrastructure | Urban rail transit, ports, docks, airports, tunnels, metro, bridges, roads, construction sites |
| Production and processing | Metal processing, paper mills, cement plants, power plants, aluminum manufacturing, steel and iron works, automobile plants, sewage treatment |
| Communication | 4G/5G equipment, communication stations, GPS, WiFi equipment |
| Electronics and food | Automatic production lines (cellphones, cars, food) |
| Music and sports | Concerts, stadiums, presentations, meeting centers, hotels, touring and film equipment |
| Civil | Hospitals, schools, banks, squares, shopping malls, supermarkets |
| Electric automobile | EV chargers, charger distribution boxes, intelligent charging systems |
Standards and Certifications
PS Series connectors comply with rigorous international standards.
| Standard | Scope |
|---|---|
| IEC 309-1 | Plugs and socket‑outlets for industrial applications |
| EN 60309-1 | European harmonized standard |
| DIN VDE 0623 part 1 | German industrial standard |
| IEC/EN 50102 / IEC/EN 62262 | IK code – degree of protection against mechanical stress |
| IP67 / IP55 | Ingress protection |
Rated currents: 160A, 200A, 250A, 400A, up to 630A. Rated voltages up to 1000V.
A Neutral Look at the Options
How do the PS Series connectors compare to other approaches?
Compared to standard industrial plugs
Many industrial plugs are rated IP44 (splash‑proof) at best. They use brass or tin‑plated contacts, which corrode in saltwater. Their plastic housings crack under heavy loads. The PS Series offers IP67, silver‑plated contacts, and a 2‑tonne aluminum housing – a significant step up for harsh environments.
Compared to military‑spec connectors
Mil‑spec connectors are extremely rugged but often cost 5‑10× more and have long lead times. The PS Series provides much of the same durability at a fraction of the cost, with standard delivery times.
Compared to custom‑molded overmolded connectors
Overmolded cables are waterproof but not repairable; if a contact fails, you replace the entire cable. The PS Series uses modular, field‑replaceable contacts and housings, reducing downtime and replacement cost.
Where to Find PS Series Connectors
The PS Series high current plugs and sockets are part of the PowerSyntax product line, manufactured by HYPER (Zhejiang HYPER Electrical Co., Ltd.). HYPER operates a 10,000 m² factory with over 500 workers in Liushi, Wenzhou – the heart of China’s low‑voltage electrical industry. The company holds ISO 9001, CCC, CB, and CE certifications.
HYPER has been producing CEE plugs and sockets up to 125A for many years, and the PS Series extends that expertise to high‑current devices up to 630A. Their engineering team can help select the right current rating and cable gland size for your application. They also offer custom color coding for phase identification (EN, UK, Australia, or USA standards).
A PS Series high current plug and socket with IP67 protection, silver‑plated contacts, a 2‑tonne housing, and a 10‑year warranty will outlast ordinary connectors many times over.
Get a Sample or Talk to an Engineer
You don’t need to place a large order to verify quality. HYPER can send a sample of the PS Series connector in the rating you need. Test the IP67 seal, check the silver contact resistance, and feel the robustness of the aluminum housing. Their engineering team can also help you select the right current rating and cable gland size for your specific application.
