Why Split a 400A Multi‑Pin Connector into Five Single‑Core Units? Meet Single‑core High Current Plugs & Sockets
From One Big Connector to Five Independent Units – A Smarter Approach
Traditional 5‑pin 400A connectors are compact but inflexible. If one pin gets damaged, the entire connector needs replacement. If you need to tap power from only one phase, you can’t – all five pins are locked together.
How single‑core splitting works
The HYPER 400A single‑pole power connector system (sold under the PowerSyntax series) takes a standard 5‑pin 400A plug and socket and splits it into five separate connectors – one for each conductor. Each single‑core unit has its own housing, contacts, and cable gland. You can connect or disconnect phases independently.
When you need single‑core connectors
-
Temporary power distribution – events, film sets, construction sites. You may need only L1 for lighting, not the full 400A.
-
Maintenance and troubleshooting – isolate one phase without shutting down the entire system.
-
Upgrading or repairing cables – replace a damaged cable on one phase without touching the others.
A single‑core High Current Plugs & Socket gives you that flexibility.
Built for Hard Use – Ergonomic and Durable
These connectors are not delicate electronics. They’re designed for daily plugging and unplugging in harsh environments.
Ergonomic heavy‑duty handle
The housing includes a large, comfortable handle that gives you leverage when mating or unmating high‑current connectors. No struggling with smooth plastic surfaces.
Quick assembly and disassembly
No special extracting tools needed. The connector comes apart by hand, saving time during installation and maintenance.
Mechanically keyed to prevent mating errors
Each single‑core connector is mechanically keyed. You can’t accidentally plug a L1 connector into a L2 socket. This prevents phase swapping and dangerous misconnections.
Visual identification with color insulators

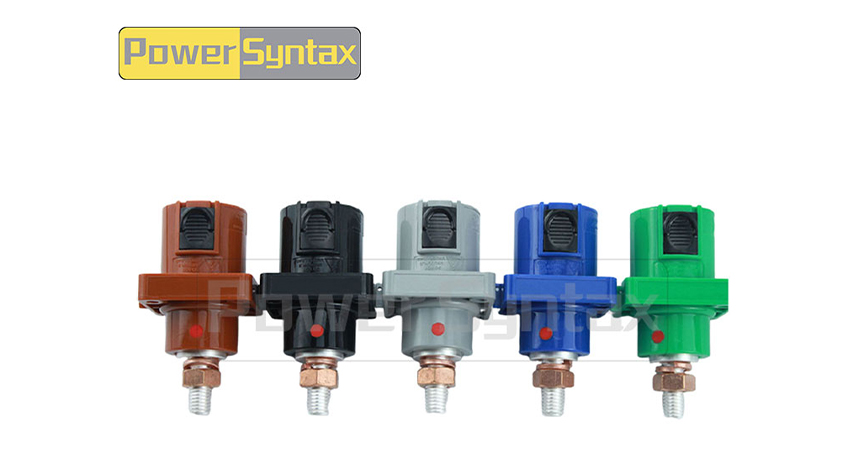

Each connector uses a unique color insulator (e.g., brown for L1, black for L2, gray for L3, blue for neutral, green/yellow for ground). At a glance, you know which phase you’re handling.
Asingle‑core High Current Plugs & Socket that is keyed and color‑coded reduces installation errors to near zero.
Safety and Electrical Performance
High current and high voltage demand rigorous safety standards.
CE compliant and 1000V rated
The connector meets CE requirements and is rated for 1000V AC / 1000V DC according to DIN EN 61984. Suitable for both European and international power systems.
IP67 watertight sealing
The M40 metric thread cable gland with bushing provides IP67 protection – dust‑tight and protected against temporary immersion (1 meter for 30 minutes). The silicone O‑ring ensures a perfect seal between mating halves.
Permanent integral keys
Unlike some connectors that use removable key inserts (which can be lost), the keys are permanently molded into the housing. This ensures that dissimilar types cannot be connected, even if someone tries to force them.
Compliance with European and US safety standards
These connectors comply with both European and US electrical safety standards and specifications, making them suitable for global use.
Regional Color Coding – One Connector for Any Market
Different countries use different wire color codes. A connector that ignores this creates confusion and safety risks.
EN harmonized color coding (Europe)
-
L1 – brown
-
L2 – black
-
L3 – gray
-
Neutral – blue
-
Ground – green/yellow
UK color coding
-
L1 – red
-
L2 – yellow
-
L3 – blue
-
Neutral – black
-
Ground – green/yellow
Australia color coding
-
L1 – red
-
L2 – white
-
L3 – dark blue
-
Neutral – black
-
Ground – green/yellow
USA color coding
-
L1 – black
-
L2 – red
-
L3 – blue
-
Neutral – white
-
Ground – green or bare
HYPER’s single‑core connectors are available in all these color codes. Just specify your market, and the connectors come pre‑colored for that region.
A single‑core High Current Plugs & Socket with the correct local colors reduces wiring errors and speeds up installation.
.jpg)
Exquisite Details That Make a Difference
Every component is engineered for safe, efficient power transmission.
Invented patent key releasing button
To unmate the connector, you press a patented release button. No additional tools required. This prevents accidental disconnection while allowing easy separation when needed.
Shock‑proof and high‑temperature housing
The thermoplastic housing withstands impacts and high temperatures. It won’t crack if dropped on concrete or deform under heavy load.
Silver‑plated brass contacts
Silver plating provides superior conductivity – lower resistance than tin or nickel. Brass base material offers good mechanical strength. The result is a contact that carries 400A with minimal temperature rise.
POM locating pin for excellent insulation
The locating pin is made of POM (polyoxymethylene), a high‑insulation plastic that also resists wear. It ensures proper alignment during mating.
Ergonomic plastic grip
The grip is shaped to fit your hand, reducing fatigue during repeated connections. The texture provides non‑slip handling even with oily or wet gloves.
Silicone O‑ring for watertight seal
The O‑ring creates a positive seal after mating. Unlike rubber, silicone remains flexible across a wide temperature range (-50°C to +200°C) and resists ozone and UV.
M40×1.5 waterproof cable gland with bushing
The gland seals around the cable, maintaining IP67 even under strain. The included bushing accommodates different cable diameters.
Two rubber sleeves for different cable sizes
The connector comes with two rubber sleeves (18mm and 26mm inner diameter). One connector fits a range of cable diameters without needing to stock multiple gland sizes.
Typical Applications
| Application | Why single‑core connectors are preferred |
|---|---|
| Temporary event power | Distribute power to stages, lighting, and sound – connect only the phases you need |
| Industrial machinery | Connect individual motor phases without a full 5‑pin assembly |
| Data center generators | Isolate phases for maintenance while keeping critical loads running |
| Mining and heavy equipment | Harsh environment requires rugged, field‑repairable connectors |
| Marine and shore power | Corrosion‑resistant materials and IP67 sealing |
Installation and Maintenance
Installing a single‑core connector
-
Strip the cable according to the dimensions in the manual.
-
Slide the rubber sleeve and cable gland onto the cable.
-
Crimp or screw the contact onto the conductor (specify contact type when ordering).
-
Insert the contact into the housing until it clicks.
-
Tighten the cable gland to achieve IP67 seal.
Maintenance tips
-
Inspect the O‑ring regularly; replace if cracked or flattened.
-
Check the silver plating on contacts; if worn, replace the contact.
-
Keep the key release button free of debris.
-
Store connectors with protective caps when not in use.
Where to Find These Connectors
HYPER (Zhejiang HYPER Electrical Co., Ltd.) manufactures these single‑core high current plugs and sockets. With over 500 workers and a 10,000 m² factory in Liushi, Wenzhou, HYPER holds ISO 9001, CCC, CB, and CE certifications. The PowerSyntax series is available in 400A rating with various color codes and cable gland options.
Your Next Step – Get a Sample Kit
You don’t need to order hundreds to test quality. HYPER can send a sample set of single‑core high current plugs and sockets in your local color code. Test the mating force, inspect the IP67 seal, and check the silver contact resistance.
A single‑core high current plug and socket that combines ergonomic handling, mechanical keying, silver‑plated contacts, IP67 sealing, and regional color coding will simplify your power distribution and improve safety.
